Packaging Film Vacuum Coating & Metalizing Machine/Coater & Metallizer (Evaporating Boat-Rectangle Type)

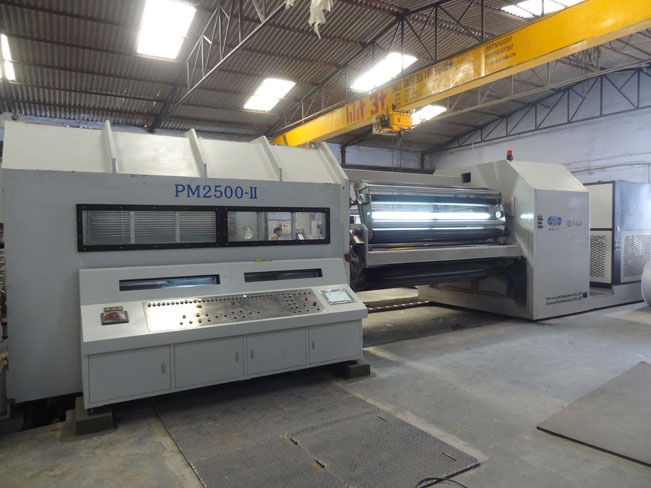

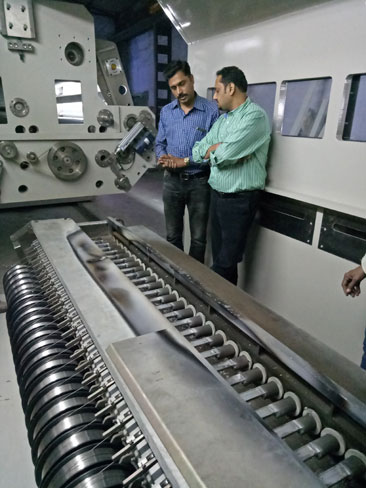

Rectangle type packaging film vacuum coating aluminum machine is widely used in film metalizing (PET, CPP, BOPP, PE PVC film), tobacco package paper, hologram, hot stamping materials, which composed of evaporating chamber, winding frame, winding system, vacuum system, evaporating system, cooling and heating system, cryogenic system and electric system and computerized control system. winding system and evaporating system could move out of vacuum chamber for easy cleaning and maintenance. our machien adopt imported main parts like Germany Leybold pump and connector and china top brand products, thus our company vacuum system is more stable, faster pumping speed, venting volume bigger, higher vacuum degree.
Click to enlarge
Description
Packaging film vacuum coating & metalizing machine coater/metallizer-rectangle type integrates vacuum technical with cooling, mechanical, control technical, adopting our latest design theory, with the ability of higher precision, more stable running speed, faster winding speed, higher evaporating rate,lower consumption of material, higher efficiency. etc.Application
Packaging film vacuum coating & metalizing machine coater / metallizer - rectangle type is widely used in film metalizing (PET, CPP, BOPP, PE film), tobacco package paper, hologram, hot stamping materials, and high-grade print package metalizing.Features
1. The roll of film without scratches is available by use of German angle adjustable expanding roller, air inflation technology and resistance-free guiding roller technique.2. The tension roller is designed to be cooling roll, which guarantees films cooled better.
4. Drum coating reaching to -20℃ can cooling the heating systems to prevent film thermal damage.
3 Square rolling aluminum coating machine uses four electric motors drive technology to assure high availability, reliability and extreme speed.
4. Maximum winding speed can reach to 800 m/min, which greatly increases the production efficiency.
5. Optional multi-channel non-contact thickness measurement system measures film sheet resistance and optical density, providing accurate analysis for product quality control.
6. Vacuum system can be configured according to user's needs and provide corresponding imports of equipment, such as POLYCOLD cold trap, LEYBOLD proliferation of wells pump lights.
Parameters
| Model | PM1300/F | PM1750/F | PM2050-II/F | PM2500-II/F | PM3000-II/F |
| Maximum | 1300 mm | 1750 mm | 2050 mm | 2500 mm | 3000 mm |
| Maximum Rolling Diameter | Φ800 to 1200 mm | ||||
| Number of Evaporation Boats | 14 | 19 | 22 | 27 | 32 |
| Working Pressure | 4×10-2Pa | ||||
| Water Consumption(m3/h) | 20 | 25 | 35 | 40 | 45 |
| Average Power Consumption (kW) | 180 | 260 | 260 | 300 | 350 |
| Metallised Materials | PET: 10 to 50μm, CPP: 20 to 60μm, BOPP: 18 to 60μm | ||||
| Maximum Rolling Speed | 600 m/min or 800 m/min | ||||
| Annual Output (ton) | 2500 | 3200 | 3800 | 4000 | 4500 |
