Crystal Vacuum Coating & Metallizing Machine (Coater/Metallizer) Products > Crystal Vacuum Coating & Metallizing Machine (Coater/Metallizer)

Description OF Vacuum Metallizing Machine

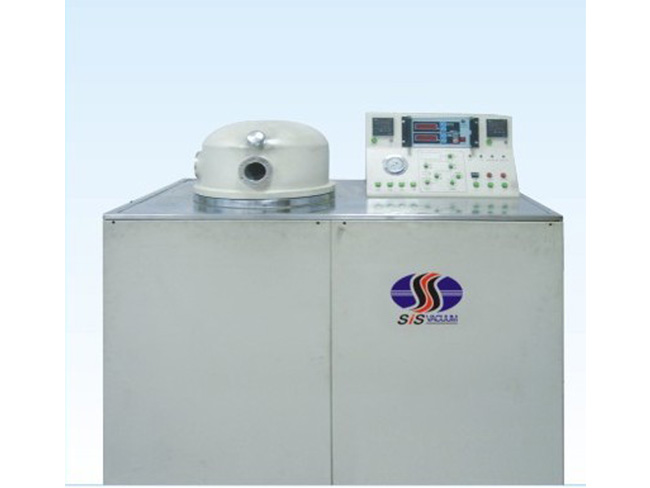

Crystal vacuum coating equipment is classified into YFA-400A vacuum press packer and

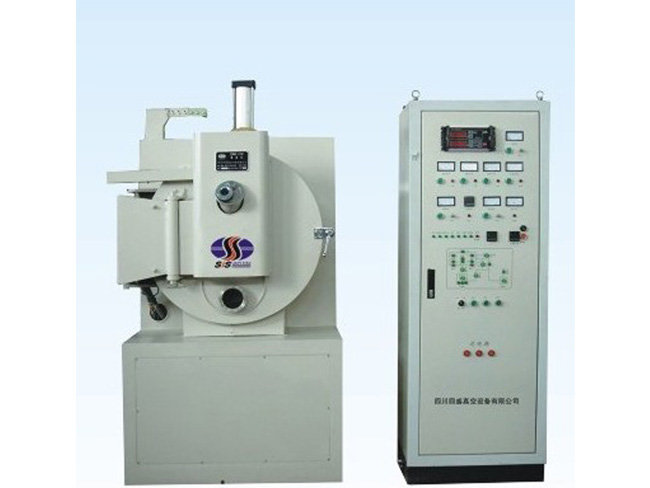

ZZ800-1/D vacuum coating machine.

Parameters of YFA-400A Vacuum Press Packer

Ultimate Vacuum 5 × 10-4Pa
Recovery Vacuum 7 × 10-3Pa<8 min
Sealing Number 600
Hydraulic System Parameter Rated Pressure: 7Mpa
Maximum Pressure: 16Mpa
Rated Flow: 10 L/min
Operating Conditions Electric Power: three phase, 380V, 50Hz
Cooling Hydraulic Pressure: 0.2Mpa
Air Pressure: 0.5Mpa
Boundary Dimension: 1255 × 1080 × 1254 mm
